Type
Max Long axis length
Cutting Thickness
Pcs/Box
N.W/G.W(kg)
Dimensions Size(mm)
BLD-60
60cm
≤12mm
6
3/4
420X345X195
BLD-122
122cm
≤12mm
6
13/17
650X295X465
BLD-200
200cm
≤12mm
6
21/26
1050X235X425
Character：
1. The main frame made by aluminum-alloy.
2. High quality rubber plate.
3. The handle made by material of glass fabric strengthened.
4. Top quality cemented carbide cutter wheels.

Usage:

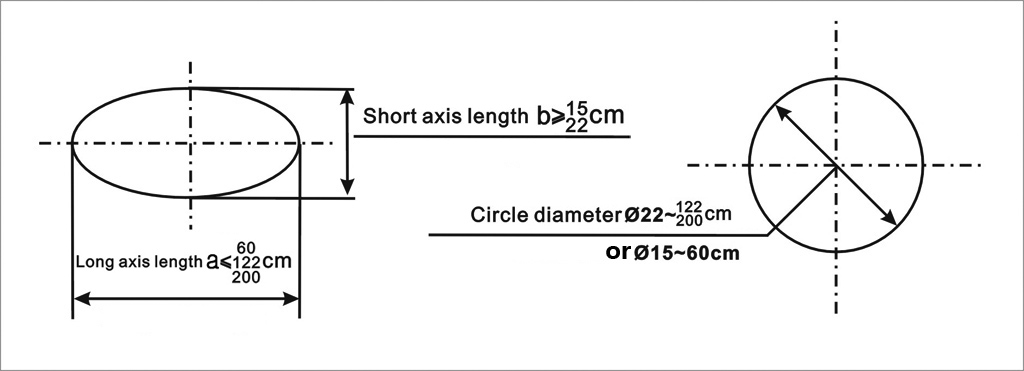

The equipment is suitable for circle and oval cutting with the long axis length
a≤122/200cm or a≤60cm and the thickness ≤12mm flat glass plate,and cutting circle with
the diameter Ø22～122/200cm or Ø15～60cm.
(Note:To Type BLD-122, BLD-200 not suitable when the length＂a-b＂＞60cm,or Type BLD-60＂a-b＂＞14cm.)


Replacement Parts for BLD-60～BLD-200
1
1
Denomination:
 Suction Plate Assembly
Catalogue number:
 BP21
Denomination:

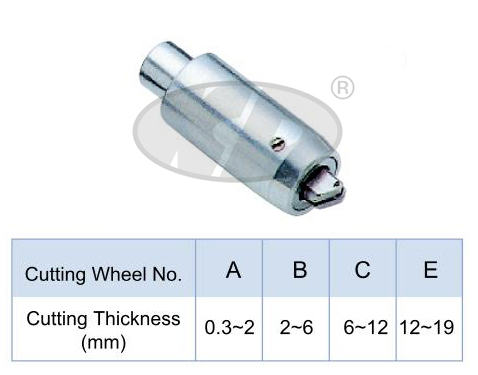

 Cutter Head Assembly
Catalogue number:
 BP22
